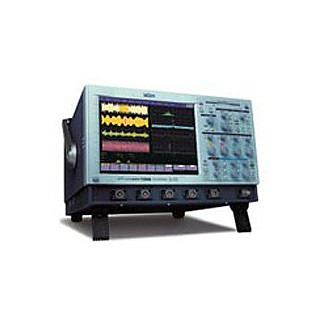

WaveMaster 8000A Series Oscilloscope

WaveMaster 8620A, WaveMaster 8600A, WaveMaster 8500A, WaveMaster 8420A, WaveMaster 8400A, WaveMaster 8300A
WaveMaster 8600A XXL, WaveMaster 8500A XXL, WaveMaster 8400A XXL, WaveMaster 8300A XXL, WaveMaster 8100A XXL

It's All About Performance

The LeCroy WaveMaster 8000A Series oscilloscope offers a unique combination of high bandwidth, fast sampling speeds, and long memory capture, ideal for digital and communications systems. Equipped with our patented X-Stream technology, its fast data transfer and processing system deliver unprecedented measurement capabilities, at speeds 10-100 times faster than conventional oscilloscopes. Providing true WaveShape Analysis, its high-performance capabilities are changing the way engineers think about design and testing.

Features:

• High bandwidth from 4 GHz to 6 GHz
• Fast sampling speeds-to 20 GS/s on 4 channels
• Full sampling speed maintained over entire memory length
• Standard memory 10 Mpts/Ch
• High signal integrity with an SiGe amplifier, ADC, and trigger circuit
• Intuitive GUI for easier WaveShape Analysis
• 10-100 times faster processing speeds
• A wide array of standard math tools
• Optional math and measurement packages

Superior timebase performance and very low jitter noise floor make WaveMaster a truly remarkable instrument. Delivering extremely stable and precise measurements, its high level of accuracy includes:

• 1 ps rms jitter noise floor
• Timebase stability of
