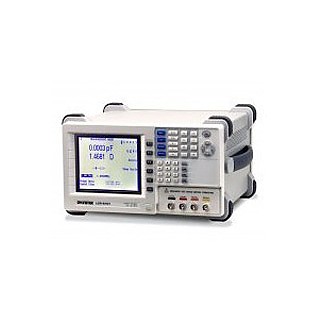

| TEST FREQUENCY | | 20Hz ~ 1MHz, 5 Digits, ±0.005% | | INPUT IMPEDANCE | | 100Ω | | BASIC ACCURACY | | ±0.1% (R, Z, X, G, Y, B, L, C) | | TEST SPEED | | AC | DC | | MAX: 75mS | MAX: 30mS | | FAST: 150mS | FAST: 60mS | | MEDIUM: 450mS | MEDIUM: 120mS | | SLOW: 600mS | SLOW: 500mS | | TEST SIGNAL LEVELS | | 10mV~2Vrms, 1mV/Step, ±2.5% | | SHORT CIRCUIT CURRENT | | Max. 20mA | | MEASUREMENT RANGES | | R, Z, X | 0.1mΩ ~ 1MΩ | | G, Y, B | 10nS ~ 1kS | | L | 0.1nH ~ 100kH | | C | 0.001pF ~ 1F | | D | 0.0001 ~ 9.9999 | | Q | 0.1 ~ 9999.9 | | Rdc | 0.1mΩ ~ 100MΩ | | MEASUREMENT PARAMETERS | Impedance (Z), Phase Angle (θ), Inductance (L), Capacitance (C),
AC Resistance (Rac), Quality Factor (Q), Dissipation Factor (D),
Admittance (Y), Conductance (G), Reactance (X), Susceptance (B),
DC Resistance (Rdc) | | SERIES OR PARALLEL EQUIVALENT CIRCUIT | | C + R, C + D, C + Q, L + R, L + Q | | SERIES EQUIVALENT CIRCUIT ONLY | | X + R, X + D, X + Q | | PARALLEL EQUIVALENT CIRCUIT ONLY | | C + G, B + G, B + D, B + Q | | POLAR FORM | | Z + Phase Angle, Y + Phase Angle | | LCD DISPLAY | | 320 x 240 DOT-MATRIX | | INTERFACE | | RS-232, GPIB | | POWER SOURCE | | AC 115V/230V (Selectable), 50/60Hz | | ACCESSORIES | | User manual x1, Power cord, Test lead LCR-12 x 1 | | DIMENSIONS & WEIGHT | | 330(W) x 170(H) x 340(D)mm, Approx. 5kg |
|
|
|
