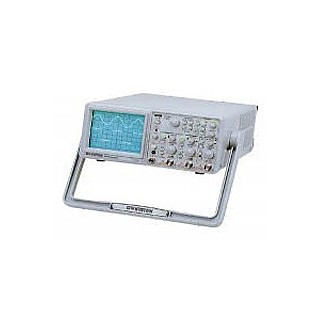

200MHz Bandwidth, Dual Channel, Delayed Sweep Auto Set Built-in 6 Digits Universal Counter Cursor Readout with 7 Measurements 10 Sets Memory for Front Panel Setting Save & Recall TV-Line Selection (NTSC, PAL, SECAM) Panel Setup Lock of Digital-Control Functions Buzzer Alarm LED Indicators Trigger Signal Output Z-axis Modulation Input SMD Technology, High Stability and Reliability |
| |
CRT | | Type | 6-inch rectangular type with internal graticule;
0%, 10%, 90% and 100% markers
8 x 10 div (1 div = 1 cm) | | Accelerating Potential | 14 kV approx. | | Illumination | Continuously adjustable | | Z-axis input | Coupling : DC
Sensitivity: 5V or more
Maximum input voltage : 30V (DC + AC peak) at 1kHz or less
Bandwidth : DC ~ 5 MHz | VERTICAL SYSTEM | | Sensitivity | 2mV~5V/div, 11 step in 1-2-5 sequence | | Sensitivity Accuracy | ≦3% (5div at the center of display) | | Vernier Vertical Sensitivity | Continuously variable to 1/2.5 or less of panel-indicate value | | Bandwidth(-3dB) | DC~200MHz (5mV/div:DC~150MHz) ; (2mV/div:DC~20MHz) | | Rise Time | 1.75ns (5mV/div:2.33ns) ; (2mV/div:17.5ns) | | Signal Delay | Leading edge can be monitored | | Max. Input Voltage | 400V(DC+AC peak) at 1kHz or less | | Input Coupling | AC, DC, GND | | Input Impedance | 1MΩ ±2% // approx. 25pF | | Vertical Mode | CH1,CH2,DUAL(CHOP/ALT), ADD, CH2 INV. | | Bandwidth Limited | 20MHz | | Common-Mode Rejection Ratio | 50:1 or better at 50kHz | | Dynamic Range | 8 div at 100MHz; 5div at 200MHz | HORIZONTAL SYSTEM | | Horizontal Modes | MAIN(A), ALT, DELAY(B) | | A(main) Sweep Time | 20ns~0.5s/div, continuously variable (UNCAL) | | B(delay) Sweep Time | 20ns~50ms/div | | Accuracy | ±3% ( ±5% at x 10 MAG) | | Sweep Magnification | x 10 (maximum sweep time 2ns/div) | | Hold Off Time | Variable | | Delay Time | 1μs~5s | | Delay Jitter | Better than 1:20000 | | Alternate Separation | Variable | TRIGGER | | Trigger Modes | AUTO, NORM,TV | | Trigger Source | CH1, CH2, LINE, EXT, EXT/10 | | Trigger Coupling | AC, DC, HFR, LFR, NR | | Trigger Slope | "+" or "-" polarity or TVsync polarity | | Trigger Sensitivity | | Mode | Frequency | INT | EXT | EXT/10 | | AUTO | 10Hz~20MHz
20MHz~200MHz | 0.35div
1.5div | 50mV
150mV | 500mV
1.5V | | NORM | DC~20MHz
20MHz~200MHz | 0.35div
1.5div | 50mV
150mV | 500mV
1.5V | | TV | sync signal | 1div | 200mVpp | 2Vpp |
| | Trigger Level Range | INT: ±4div or more; EXT: ±0.4V or more; EXT/10: ±4V or more | TV Triggering | Mode:TV-V, TV-H, TV-LINE | | TV-Line Selection | | Standard | Field 1 | Field 2 | | NTSC (525H) | 1H ~ 263H | 1H ~ 262H | | PAL (625H) | 1H ~ 313H | 1H ~ 312H | | SECAM (625H) |
| | Max. External Input Voltage | 400V(DC+AC peak) at 1kHz | | External Input Impedance | 1MΩ±5% // approx.25pF | X-Y OPERATION | | Mode | X-axis: selectable CH1, EXT, EXT/10
Y-axis: selectable CH1, CH2, CH1 and CH2 | | Sensitivity Accuracy | 2mV~5V/div±3%
EXT : 0.1V/div±5%
EXT/10 : 1V/div±5% | | X-axis Bandwidth | DC~500kHz(-3dB) | | Phase Error | 3° or less from DC~50kHz | OUTPUT SIGNAL | | Trigger Signal Output | Voltage: approx. 25mV/div into 50Ω
Frequency response : DC ~ 10MHz | | Calibrator Output | 1kHz Square wave, 2Vpp±2% | CURSOR READOUT FUNCTION | Cursor Measurement Function
| ΔV, ΔV%, ΔVdB, ΔT, 1/ ΔT, ΔT%, Δθ | | Cursor Resolution | 1/100 DIV | | Effective Cursor Range | Vertical: ±3div ; Horizontal: ±4 div | | Panel Setting Display | Vertical: V/div(CH1,CH2),UNCAL,ALT/CHOP/ADD,INV, probe factor,AC/DC/GND
Horizontal: s/div(MTB, DTB), UNCAL, x 10MAG, delay time, HO
Trigger: source, coupling, slope, level, TV-V, TV-H
Others: X-Y, lock, save/recall MEM 0-9 | AUTO MEASUREMENT FUNCTION
| | Parameter Function | FREQ, PERIOD,±WIDTH,±DUTY (+ or - polarity selected by trigger slope) | | Display Digits | Max. 6-digits, decimal | | Frequency Range | 50Hz ~ 200MHz | | Accuracy | 1kHz ~ 200MHz : ±0.01% ; 50Hz ~ 1kHz : ±0.05% | | Measuring Sensitivity | > 2 div (Measuring source selected from CH1 and Ch2 as synchronous signal sources) | SPECIAL FUNCTION | | Auto Set | Input Channel : CH1, CH2
Frequency Response 50Hz ~ 50MHz | | Panel Setting Save & Recall | 10 sets | | Panel Setups Lock | Provided | | POWER SOURCE | AC 100V/120V/230V±10% , 50/60Hz | | | ACCESSORIES
| | Instruction manual x 1
Power cord x 1
GLF-250 Probe (10:1/1:1) x 2 | | DIMENSIONS & WEIGHT | 310(W) x 150(H) x 470(D) mm
Approx. 9kg |
