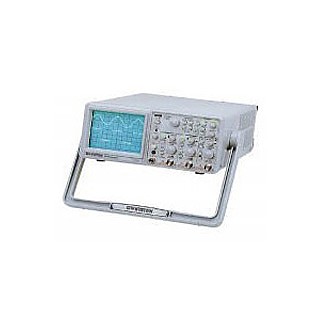

DC~30MHz Bandwidth, 100MSa/s, 2kW/CH x 2 Equivalent Time Sampling of 500MSa/s max. Acquire Mode : Peak Detect, Envelop, Persistence Pre-Trigger Function 0 ~ 10 div ROLL Mode to 100s/div Waveform SAVE/RECALL 10 sets (REF0~REF9) Averaging Function (2 ~ 256) Smoothing Function ON/OFF Max. Sweep Rate 10ns/div ALT-MAG Function (x5, x10, x20) Cursor Readout Function: △V, △T, 1/ △T Panel Setting SAVE/RECALL 10 sets (M0~M9) VERT Mode Triggering RS-232C Interface |
| |
CRT
| Type and Acceleration
| 6-inch CRT, 2kV | | Illumination | Front panel control | | Z-axis Input | Sensitivity : at least 5V
Polarity : positive going input decrease intensity
Max. input voltage:30V(DC+ACpk)
Input Impedance : approx. 47kΩ | VERTICAL SYSTEM
| | Deflection Coefficient and Accuracy | 1mV ~ 2mV/div ±5%,
5mV ~ 20V/div ±3%,
14 steps in 1-2-5 sequence | | Variable Continuously | 2.5 : 1 ~ min. 50V/div | | Bandwidth (-3dB) | 1mV ~ 20mV/div: DC~7MHz
5mV ~ 20V/div: DC~30MHz | | Vertical Mode | CH1, CH2, DUAL (ALT or CHOP) | | Chopper Frequency | Approx. 250kHz | Sum or Difference
| CH1+CH2, CH1-CH2 | Invert
| CH2 | Input Impedance
| 1MΩ ±2%//approx. 25pF | Input Coupling
| AC, DC, GND | Input Voltage
| Max. 400V(DC+ACpk) | HORIZONTAL SYSTEM
| Sweep Time
| 0.2μs/div ~ 0.5s/div, 20 steps | | Variable Continuously | 2.5 : 1 up to 1.25s/div (uncal.) | Accuracy
| ±3%, ±5% at x5/ x10MAG. ±8% at x 20MAG | Sweep Magnification
| x5, x10, x20 | | Max. Sweep Time | 50ns/div (10ns~40ns/div uncal) | | ALT-MAG Function | Yes | | HOLD-OFF Time | Variable | TRIGGER
| Trigger Mode
| AUTO, NORM, TV | Trigger Source
| VERT, CH1, CH2, LINE, EXT | | Trigger Coupling | AC, HFR, LFR | Trigger Slope
| “+”or“ - ”polarity | ALT Trigger
| Yes | | Indicator Trigger LED | Yes | TV Sync. Separator
| TV-V“-”, TV-H“ - ” | Trigger Sensitivity
| | GRS-6032A | 20Hz~2MHz | 2MHz~20MHz | 20MHz~30MHz | | CH1, CH2 | 0.5div | 1.5div | 2.0div | | Vert-Mode | 2.0div | 3.0div | 3.5div | | EXT | 200mV | 800mV | 1V |
| | TV sync. pulse more than 1 div or 200mV (EXT) | External Trigger Input
| Input impedance :Approx. 1MΩ//25pF (AC coupling)
Max. input voltage : 400V (DC + AC pk) | X-Y OPERATION
| Input
| X-axis : CH1 ; Y-axis : CH2 | | Sensitivity | 1mV/div ~ 20V/div | | Bandwidth | X-axis : DC ~ 500kHz (-3dB) | | X-Y Phase Shift | <3° from DC ~ 50kHz | DIGITAL STORAGE
| Acquisition Digitizer
| 8 bit ADC x 2 | Max. Sampling Rate
| 500MSa/s for equivalent time sampling
100MSa/s for normal sampling | | Storage Bandwidth | Single shot: DC ~ 25MHz
Repetitive: DC ~30MHz | | Dynamic Range | ±5div | Memory Length- Acquisition Memory
| 2k words/CH x 2, 1k words/CH(equivalent) | Memory Length- Save REF Memory
| 1k words/CH x 10 with back-up memory (REF0~REF9) | | Memory Length- Display Memory | 1k words/CH x 4 waveform(max.) | | Sweep Time | Equivalent: 0.2μs/div ~ 0.5μs/div
Normal Sample: 1μs/div ~ 0.1s/div
Roll: 0.2s/div ~ 100s/div | | Sweep Magnification | x 5, x 10, x 20 | Max.Sweep Time
| 10ns/div | | MAG Interpolation | DOTS, LINEAR | | ALT-MAG Function | Yes | Acquire Mode
| Sample, peak detect(>25ns), Envelop. Persist, Average(2~256) | | Operation Mode | Auto, Norm, Single, Single-roll, Roll, X-Y, Run/Stop | | Smoothing Function | Dot joint ON/OFF selectable | Pre-Trigger
| Pre-trigger 0 ~10div in 0.02div steps | | X-Y Operation | X-axis: CH1 Y-axis: CH2 | | Storage Bandwidth | DC~30MHz(-3dB) | | Display Resolution | H: 100points/div; V: 25points/div;
X-Y: 25 x 25 points/div | Waveform SAVE/RECALL
| 10 sets(REF0~REF9) | | OPERATION | | | Panel Setting SAVE/RECALL | 10 sets(M0 ~M9) | | CONTROL / INTERFACE | | | RS-232C | Yes | | READOUT & CURSOR | | | Cursor Measurement | ΔV, ΔT, 1/ ΔT | Readout Intensity
| Adjustable | | OUTPUT SIGNAL | | | CH1 Signal Output | Voltage : approx. 20mV/div (with 50Ω terminated) ; Bandwidth : 50Hz ~ 5MHz | Calibrator Output
| Voltage : 0.5V±3% ; Frequency : approx. 1kHz, square wave | | INTERFACE | | | RS-232C | POWER SOURCE
| | | AC 100V/120V/230V±10%, 50/60Hz | ACCESSORIES | | Instruction manual x 1
Power cord x 1
GLF-190C Probes (10:1/1:1) x 2 | | DIMENSIONS & WEIGHT | | | 275(W) x 130(H) x 370(D) mm
Approx. 8.5kg |
| | Inquiry | Model | Name | Descripation | | GTC-002 | Instrument Cart | 30kg Loading, 120V Input, 330(W) x 430(D) mm For GDS,GOS,GRS Series | | GTC-001 | Instrument Cart | 30kg Loading, 120V Input , 450(W) x 430(D)mm For GDS,GOS,GRS Series | | GTL-232 | RS-232C Cable | For: GDS-800 Series, GDS-800 Series, GRS-6032A/6052A, SFG-830, LCR-816/817/819/821, PSM Series | | GLF-190C | Probe | 10:1 DC~60MHz, 1:1 DC~6MHz For: GOS-652G/653G, GOS-6000 Series, GRS-6000A Series |
|
|
|
