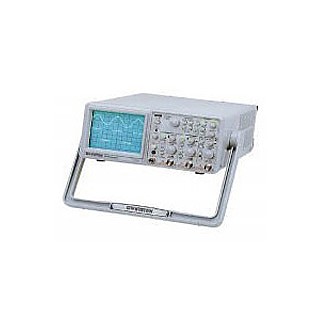

2 Channels, 4 Traces: DC~50MHz Bandwidth 1mV/div ~ 20V/div CRT Readout ALT, MAG Function (x 5, x 10, x 20) Vertical Mode Triggering TV Synchronization CH1 Signal Output, Z-axis Input Buzzer Alarm & LED Indicators Compact size (275Wx130Hx370Dmm) and Front Panel Layout Groups for easy to use |
| |
CRT | | Type | 6-inch rectangular type with internal graticule; 0%, 10%, 90%, 100% markers. 8x10 div(1div=1cm) | | Accelerating Potential | Approx.10kV | | Trace Rotation | Provided | | Z-axis Input | Sensitivity : at least 5V ; Polarity : positive going input decrease intensity
Usable frequency range : DC to 2MHz ; Max. input voltage : 30V (DC + AC peak) at 1kHz or less
Input Impedance : Approx.33kΩ | VERTICAL SYSTEM | | Sensitivity and Accuracy | 1mV ~ 2mV/div ±5%, 5mV ~ 20V/div ±3%, 14 calibrated steps in 1-2-5 sequence | | Vernier Vertical Sensitivity | Continuously variable to 1/2.5 or less of panel indicate value | | Bandwidth (-3dB) and Rise Time | | Bandwidth (-3dB) | Rise Time | 5mV ~ 20V/div
| DC ~ 50MHz
| Approx. 7nS
| | 1mV ~ 2mV/div | DC ~ 7MHz | Approx. 50nS |
| | Maximum Input Voltage | 400V (DC + AC peak) at 1kHz or less | | Input Coupling | AC, DC, GND | | Input Impedance | 1MΩ ±2%//approx. 25pF | | Vertical Modes | CH1, CH2, DUAL (CHOP, ALT), ADD, CH2 INV | | Chop Frequency | Approx. 250kHz | | Dynamic Range | 8 div at 40MHz, 6div at 50MHz | HORIZONTAL SYSTEM | | Sweep Time | 0.2μs/div ~ 0.5s/div, 20 steps selectable in 1-2-5 sequence, continuous variable control between
steps at least 1 : 2.5 | | Accuracy | ±3%, ±5% at x5 / x10MAG, ±8% at x 20MAG | | Sweep Magnification | x5, x10, x20 MAG | | Maximum Sweep Time (at MAG) | 20ns/div (10ns/div are uncalibrated) | | ALT-MAG Function | Available | TRIGGER
| | Trigger Mode | AUTO, NORM, TV | | Trigger Source | VERT-MODE, CH1, CH2, LINE, EXT | | Trigger Coupling | AC, HFR, LFR, TV-V(-), TV-H(-) | | Trigger Slope | “+”or“ - ”polarity | | Trigger Sensitivity | | 20Hz~5MHz | 50MHz~40MHz | 40MHz~50MHz | | CH1, CH2 | 0.5div | 1.5div | 2.0div | | Vert-Mode | 2.0div | 3.0div | 3.5div | | EXT | 200mV | 800mV | 1V |
TV sync pulse more than 1 div (CH1, CH2, VERT-MODE) or 200mV (EXT) | | External Trigger Input | Input impedance: Approx.1MΩ//25pF(AC coupling);Max. input voltage: 400V(DC+AC peak)at 1kHz | | Hold-off Time | Variable | X-Y OPERATION | | Input | X-axis : CH1 ; Y-axis : CH2 | | Sensitivity | 1mV/div ~ 20V/div | | Bandwidth | X-axis : DC ~ 500kHz (-3dB) | | Phase Difference | 3°or less from DC to 50kHz | OUTPUT SIGNAL | | CH1 Signal Output | Voltage : approx. 20mV/div (with 50Ω terminated)
Bandwidth : 50Hz to at least 5MHz | | Calibrator Output | Voltage : 0.5V±3%
Frequency : approx. 1kHz, square wave | CRT READOUT | Panel Setting Display
| CH1/CH2 sensitivity, sweep time, trigger condition | | POWER SOURCE | | | AC 100V/120V/230V±10%, 50/60Hz | ACCESSORIES | | Instruction manual x 1
Power cord x 1
GLF-190C Probes (10:1/1:1) x 2 | | DIMENSIONS & WEIGHT | | | 275(W) x 130(H) x 370(D) mm
Approx. 7.2kg |
| | Inquiry | Model | Name | Descripation | | GTC-002 | Instrument Cart | 30kg Loading, 120V Input, 330(W) x 430(D) mm For GDS,GOS,GRS Series | | GTC-001 | Instrument Cart | 30kg Loading, 120V Input , 450(W) x 430(D)mm For GDS,GOS,GRS Series | | GLF-190C | Probe | 10:1 DC~60MHz, 1:1 DC~6MHz For: GOS-652G/653G, GOS-6000 Series, GRS-6000A Series |
|
| |
|
