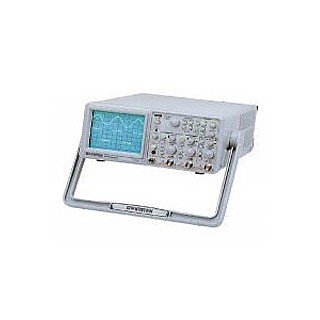

Analog Olcilloscope. / GOS-6030 요약정보 및 구매

제조사 GW_INSTEK
브랜드 GW_INSTEK
판매가격 전화문의
배송비결제 주문시 결제
  • 카탈로그
  • 메뉴얼
  • 프로그램
  • 드라이버
  • 데이터시트

상품 정보

상품 상세설명

2 Channels, 4 Traces: DC ~ 30MHz Bandwidth 1mV/div ~ 10V/div CRT Readout ALT MAG Function (x 5, x 10, x20) Vertical Mode Trigering TV Synchronization CH1 Signal Output, Z-axis Input Buzzer Alarm & LED Indicators Compact size (275Wx130Hx370Dmm) and Front Panel Layout Groups for easy to use
SPECIFICATIONS

CRT

Type6-inch rectangular type with internal graticule; 0%, 10%, 90%, 100% markers. 8x10 div(1div=1cm)
Accelerating PotentialApprox. 2kV
Trace RotationProvided
Z-axis InputSensitivity : at least 5V ; Polarity : positive going input decrease intensity
Usable frequency range : DC to 2MHz ; Max. input voltage : 30V (DC + AC peak) at 1kHz or less
Input Impedance : Approx.47kΩ

VERTICAL SYSTEM

Sensitivity and Accuracy1mV ~ 2mV/div ±5%, 5mV ~ 20V/div ±3%, 14 calibrated steps in 1-2-5 sequence
Vernier Vertical SensitivityContinuously variable to 1/2.5 or less of panel indicate value
Bandwidth (-3dB) and Rise Time
Bandwidth (-3dB) Rise Time
5mV ~ 20V/div
DC ~ 30MHz
Approx. 11.7nS
1mV ~ 2mV/divDC ~ 7MHzApprox. 50nS
Maximum Input Voltage 400V (DC + AC peak) at 1kHz or less
Input CouplingAC, DC, GND
Input Impedance1MΩ ±2%//approx. 25pF
Vertical ModesCH1, CH2, DUAL (CHOP, ALT), ADD, CH2 INV
Chop FrequencyApprox. 250kHz
Dynamic Range8 div at 20MHz, 6div at 30MHz

HORIZONTAL SYSTEM

Sweep Time0.2μs/div ~ 0.5s/div, 20 steps selectable in 1-2-5 sequence, continuous variable control between steps at least 1 : 2.5
Accuracy±3%, ±5% at x5 / x10MAG, ±8% at x 20MAG
Sweep Magnificationx5, x10, x20 MAG
Maximum Sweep Time (at MAG)50ns/div (10ns/div~40ns/div are uncalibrated)
ALT-MAG FunctionAvailable

TRIGGER

Trigger ModeAUTO, NORM, TV
Trigger SourceVERT-MODE, CH1, CH2, LINE, EXT
Trigger CouplingAC, HFR, LFR, TV-V(-), TV-H(-)
Trigger Slope “+”or“ - ”polarity
Trigger Sensitivity
20Hz~2MHz2MHz~20MHz20MHz~30MHz
CH1, CH20.5div1.5div2.0div
Vert-Mode2.0div3.0div3.5div
EXT200mV800mV1V
TV sync pulse more than 1 div (CH1, CH2, VERT-MODE) or 200mV (EXT)
External Trigger Input Input impedance: Approx.1MΩ//25pF(AC coupling);Max. input voltage: 400V(DC+AC peak)at 1kHz
Hold-off TimeVariable

X-Y OPERATION

InputX-axis : CH1 ; Y-axis : CH2
Sensitivity 1mV/div ~ 20V/div
Bandwidth X-axis : DC ~ 500kHz (-3dB)
Phase Difference3°or less from DC to 50kHz

OUTPUT SIGNAL

CH1 Signal OutputVoltage : approx. 20mV/div (with 50Ω terminated)
Bandwidth : 50Hz to at least 5MHz
Calibrator OutputVoltage : 0.5V±3%
Frequency : approx. 1kHz, square wave

CRT READOUT

Panel Setting Display
CH1/CH2 sensitivity, sweep time, trigger condition
POWER SOURCE
AC 100V/120V/230V±10%, 50/60Hz

ACCESSORIES

Instruction manual x 1
Power cord x 1
GLF-190C Probes (10:1/1:1) x 2
DIMENSIONS & WEIGHT
275(W) x 130(H) x 370(D) mm
Approx. 7.2kg
OPTION
InquiryModelNameDescripation
GTC-002Instrument Cart30kg Loading, 120V Input, 330(W) x 430(D) mm For GDS,GOS,GRS Series
GTC-001Instrument Cart30kg Loading, 120V Input , 450(W) x 430(D)mm For GDS,GOS,GRS Series
GLF-190C Probe10:1 DC~60MHz, 1:1 DC~6MHz For: GOS-652G/653G, GOS-6000 Series, GRS-6000A Series
