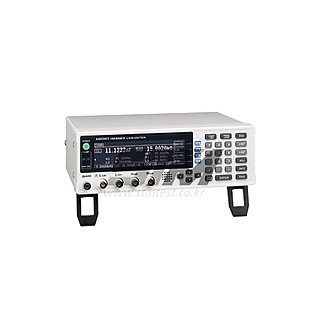

IM3523 > LCR미터 | 삼성종합계측기

IM3523 요약정보 및 구매

위시리스트 추천하기


	Measurement modes		LCR, Continuous testing
	Measurement parameters		Z, Y, θ, Rs (ESR), Rp, DCR (DC resistance), X, G, B, Cs, Cp, Ls, Lp, D (tanδ), Q
	Measurement range		100mΩ to 100MΩ, 10 ranges (All parameters defined in terms of Z )
	Displayable range		Z, Y, Rs, Rp, Rdc, X, G, B, Ls, Lp, Cs, Cp :
			± (0.000000 [unit] to 9.999999G [unit])
			Real value display for Z and Y only
			θ: ± (0.000° to 999.999°), D: ± (0.000000 to 9.999999)
			Q: ± (0.00 to 99999.99), Δ%: ± (0.0000% to 999.9999%)
	Basic accuracy		Z : ±0.05%rdg. θ: ±0.03°
	Measurement frequency		40Hz to 200kHz (1mHz to 10Hz steps)
	Measurement signal level		Normal mode
			V mode, CV mode: 5 mV to 5 Vrms, 1 mVrms steps
			CC mode: 10 μA to 50 mArms, 10 μArms steps
	Output impedance		Normal mode: 100 Ω
	Display		Monochrome LCD
	Measurement time		2 ms (1 kHz, FAST, representative value)
	Functions		Comparator, Classification measurement (BIN function), Panel loading/ saving, Memory function
	Interface		EXT I/O (handler), USB communication (high-speed)
	Interface		Optional: Choose 1 from RS-232C, GP-IB, or LAN
	Power supply		100 to 240 V AC, 50/60 Hz, 50 VA max
	Dimensions, mass		260 mm (10.24 in) W × 88 mm (3.46 in) H × 203 mm (7.99 in) D, 2.4 kg (84.7 oz)
	Accessories		Power cord ×1, Instruction Manual ×1, CD-R (Includes PC commands and sample software) ×1
