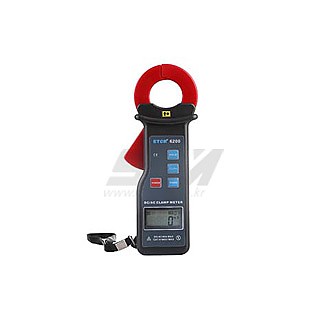

ETCR-6200 요약정보 및 구매

상품 선택옵션 0 개, 추가옵션 0 개

제조사	ETCR
브랜드	ETCR
모델	ETCR-6200
판매가격	275,000원
배송비결제	주문시 결제

선택된 옵션

ETCR-6200 (+0원)
수량

위시리스트 추천하기

이전상품 ETCR-6300 다음 상품 ETCR-6100

상품 정보

상품정보
상품문의 0
배송 및 반품정보
관련상품 0

상품 상세설명

Ⅱ. Technical Specification

Model	ETCR6200
Function	Measurement of AC/DC current, leakage current, repairing the car circuit.
Power Supply	Zn-Mn dry battery,6F22,9V, continuous use for 30h
Test Mode	Clip-on CT, noncontact measurement
Clamp Size	25mmX35mm
Measurement Range	0mA~60.0A AC/DC
Resolution	1mA AC/DC
Accuracy	±2%rdg±5dgt (23℃±5℃, below 75%rh)
Display Mode	Four digits LCD display
Dimension	LWH: 168mm×65mm×34mm
LCD Dimension	35mm×21.5mm; display domain: 32mm×15mm
Sampling Rate	2 times/s
Frequency	AC: 45Hz-400Hz
Polarity Indication	DC current auto identified and display“—”
Test Position	Tested wire in the jaw center
Range Shift	Automatically
Line Voltage	Do not exceed AC 600V
RS232 Interface	Data stored in the memory of the meter via RS232 upload to PC
Com-Configure	Baud rate:9600, data bit:8, stop bit:1, check bit: NONE
Data Memory	99 units, FULL blinks when the memory is full
Reading Hold	DH indicating the reading is hold
Out of Range	OL indicating the current is out of range
Auto Power-off	5 Minutes after power on, it will power off automatically to lower the power consumption
Battery Voltage	Indicating the battery voltage is lower than 7.2V.Then the battery have to be changed.
Weight	180g (including the battery)
Working Current	10mA
Humiture	-10℃-50℃,below 80%rh
Limit Temperature Error	-10℃-0℃ and 40℃-50℃, within 2%rdg
Humiture Storage	-10℃-60℃,below 70%rh
Insulating Strength	AC 3700V/rms. (between the alloy of the clamp and the housing)
Applicable safety rules	IEC1010-1, IEC1010-2-032, pollution:2, CAT Ⅲ(600V)
Accessories	Meter: 1pc; toolkit: 1pc; RS232 communication line: 1pc; disk: 1pc; case: 1pc.
