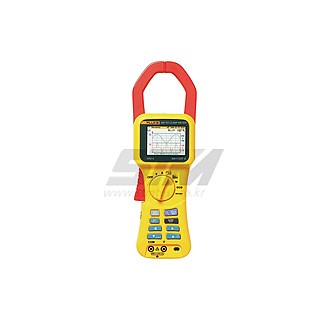

| 전원 : AA밧데리*6개  | 전류 측정 (dc, dc rms, ac rms) | | 측정 range | | 0 to 2000 A dc or 1400 ac rms | | Autorange facility | | 40 A / 400 A / 2000 A | | 분해능 | | 10 mA in 40 A range | | | 100 mA in 400 A range | | | 1 A in 2000 A range | | 정확도: DC and dc rms | I > 10 A: | ± 1.5 % rdg ± 5 digits | | I < 10 A: | ± 0.2 A | | 정확도:AVG | I > 10 A: | ± 3 % rdg ± 5 digits | | I < 10 A: | ± 0.5 A | | 정확도: Pk | I > 10 A: | ± 5 % rdg ± 5 digits | | I < 10 A: | ± 0.5 A | | 정확도: AHr | I > 10 A: | ± 2 % rdg ± 5 digits | | I < 10 A: | ± 0.5 AHr | | 정확도: CF (Crest Factor) | 1.1 ≤ CF < 3: | ± 3 % rdg ± 5 digits | | 3 ≤ CF < 5: | ± 5 % rdg ± 5 digits | | Resolution: | 0.01 | | 정확도: RPL (Ripple) | 2 % ≤ RPL < 100 %: | ± 3 % rdg ± 5 digits | | 100 % ≤ RPL < 600 %: | ± 5 % rdg ± 5 digits | | Resolution: | 0.10% | | Idc > 5 A, Iac > 2 A | | | | | 모든 측정은 dc 그리고 15 Hz 에서 1 kHz | | Maximum overload 10,000 A or rms x frequency < 400,000 | | Amps rms는 true-rms 측정 (ac + dc) |
| 전압측정 (dc, dc rms, ac rms) | | 측정 range 범위 | | 0 to 825 V dc or ac rms | | 측정 range | | 4 V / 40 V / 400 V / 750 V | | 분해능 | | 1 mV in 4 V range | | | 10 mV in 40 V range | | | 100 mV in 400 V range | | | 1 V in 750 V range | | 정확도: DC and dc rms | V > 1 V: | ± 1 % rdg ± 5 digits | | V < 1 V: | ± 0.02 V | | 정확도: AVG | V > 1 V: | ± 3 % rdg ± 5 digits | | V < 1 V: | ± 0.03 V | | 정확도: Pk | V > 1 V: | ± 5 % rdg ± 5 digits | | V < 1 V: | ± 0.03 V | | 정확도: CF (Crest Factor) | 1.1 ≤ CF < 3: | ± 3 % rdg ± 5 digits | | 3 ≤ CF < 5: | ± 5 % rdg ± 5 digits | | Resolution: | 0.01 | | 정확도: RPL (Ripple) | 2 % ≤ RPL < 100 %: | ± 3 % rdg ± 5 digits | | 100 % ≤ RPL < 600 %: | ± 5 % rdg ± 5 digits | | Resolution: | 0.10% | | Vdc > 0.5 V, Vac > 0.2 V | | | | | 모든 측정은 dc 그리고 15 Hz 에서 1 kHz | | Maximum overload 1,000 V rms | | Amps rms는 true-rms 측정 (ac + dc) |
| 고조파 | | THD (Total Harmonic Distortion) | 1 % ≤ THD < 100 %: | ± 3 % rdg ± 5 digits | | 100 % ≤ THD < 600 %: | ± 5 % rdg ± 5 digits | | 분해능: | 0.10% | | DF (Distortion Factor) | 1 % ≤ DF < 100 %: | ± 3 % rdg ± 5 digits | | 분해능: | 0.10% | | H02 ≤ Vharm < H13: | ± 5 % ± 2 digits | | H13 ≤ Vharm ≤ H30: | ± 10 % ± 2 digits | | | | 모든측정은 30차 고조파까지 (40th harmonic for 15 Hz to 22 Hz) | | 기본주파수 F0 15 Hz to 22 Hz and 45 Hz to 65 Hz | | Vacrms > 1V | | | | 전력 측정 (single- and three-phase) (dc, dc rms, ac rms) | | 측정 range 범위 | | 0 to 1650 kW dc or 1200 kW ac | 측정 range
| | 4 kW, 40 kW, 400 kW, 1650 kW | | 분해능 | | 1 W in 4 kW | | | 10 W in 40 kW | | | 100 W in 400 kW | | | 1 kW in 1200 kW | | 정확도 | | 2.5 % rdg ± 5 digits | | | W1Ø < 2 kW ± 0.08 kW | | | W3Ø < 4 kW ± 0.25 kW | | | | 피상전력 측정 (single- and three-phase) (dc, dc rms, ac rms) | | 측정 range 범위 | | 0 to 1650 kVA dc or 1200 kVA ac | 측정 range
| | 4 kVA, 40 kVA, 400 kVA, 1650 kVA | | 분해능 | | 1 VA in 4 kVA | | | 10 VA in 40 kVA | | | 100 VA in 400 kVA | | | 1 kVA in 1200 kVA | | 정확도 | VA > 2 kVA: | 2.5 % rdg ± 5 digits | | VA < 2 kVA: | ± 0.08 kVA |
| 무효전력측정(single- and three-phase) | | 측정 range 범위 | | 0 to 1250 kVAR | 측정 range
| | 4 kVAR, 40 kVAR, 400 kVAR, 1200 kVAR | | 분해능 | | 1 VAR in 4 kVAR | | | 10 VAR in 40 kVAR | | | 100 VAR in 400 kVAR | | | 1 kVAR in 1200 kVAR | | 정확도 | VAR > 4 kVAR: | ± 2.5 % rdg ± 5 digits | | VAR < 4 kVAR: | ± 0.25 kVAR | | Power factor range | | 0.3 < PF < 0.99 | | | | 효율 (single- and three-phase) | | 측정 range | | 0.3 capacitive to 1.0 and 1.0 to 0.3 inductive (72.5° capacitive to 0° and 0° to 72.5° inductive) | | 분해능 | | 0.001 | | 정확도 | | ± 3° | | 주파수 range | | 15 Hz to 1 kHz | | | | Displacement power factor (single- and three-phase) | | 측정 range | | 0.3 capacitive to 1.0 and 1.0 to 0.3 inductive (72.5° capacitive to 0° and 0° to 72.5° inductive) | | 분해능 | | 0.001 | | 정확도 | | ± 3° | | 주파수 range | | 15 Hz to 22 Hz and 45 Hz to 65 Hz |
| Kilowatt hour (kWHr) | | 측정 range 범위 | | 40,000 kWHr | 측정 range
| | 4 kWHr, 40 kWHr, 400 kWHr, 4,000 kWHr, 40,000 kWHr | | 분해능 | | 1 WHr in 4 kWHr Range | | | 10 WHr in 40 kWHr Range | | | 100 WHr in 400 kWHr Range | | | 1 kWHr in 4,000 kWHr Range | | | 10 kWHr in 40,000 kWHr Range | | 정확도 | kWHr > 2 kWHr: | ± 3 % ± 5 digits | | kWHr < 2 kWHr: | ± 0.08 kWHr | | 유효전력/피상전력/무효전력/효율측정 | 주파수 range: | DC and 15 Hz to 1 kHz | | 전류 range: | 10 A to 1400 A rms | | 전압range: | 1 V to 825 V rms | | 최대 입력: | 825 V rms/1400 A rms | | Maximum overload: | 1000 V rms/10,000 A All measurements dc and 15 Hz to 1 kHz. Maximum overload 10,000 A or rms x frequency < 400,000 | | | | 주파수 측정 (from current or voltage sources) | | 측정 range 범위 | | 15 Hz to 1 kHz | | 분해능 | | 0.1 Hz | | 정확도 | | 15 to 22 Hz ± 0.5 % rdg | | | 40 Hz to 70 Hz ± 0.5 % rdg | | | 15 Hz to 1000 Hz ± 1% rdg | | 전류 range | | 10 A to 1400 A rms | | 전압 range | | 1 V to 825 V rms |
| Scope function | | 전류측정 | Ranges: | 10 A / 20 A / 40 A / 100 A / 200 A / 400 A / 1000 A / 2000 A | | Resolution: | 1 A in 40 A | | 10 A in 400 A | | 50 A in 2000 A | | Accuracy: | ± 3 % rdg ± 1 pixel | | Maximum overload: | 10,000 A | | 전압측정 | Ranges: | 4 V / 10 V / 20 V / 40 V / 100 V / 200 V / 400 V / 1000 V | | Resolution: | 100 mV in 4 V | | 1 V in 40 V | | 10 V in 400 V | | 31.25 V in 1000 V | | Accuracy: | ± 2 % rdg ± 1 pixel | | Maximum overload: | 1000 V rms | | Frequency range: | DC and 15 Hz to 600 Hz | | 시간축 | | 2.5 ms, 5 ms, 10 ms, 25 ms, 50 ms/div | | Refresh rate | | 0.5 seconds | | 최대 샘플링 속도 | | 15.625 kHz | | | | 돌입전류기능 | | Ranges | | 40 A, 400 A, and 2000 A | | 분해능 | | 10 mA in 40 A range | | | 100 mA in 400 A range | | | 1 A in 2000 A range | | 정확도 | I > 10 A: | ± 5 % rdg ± 1 pixel | | I < 10 A: | ± 0.5 A | | | All measurements dc and 15 Hz to 1 kHz | | Maximum overload | | Maximum overload 10,000 A or rms x frequency < 400,000 | | | Amps rms is a true-rms measurement (ac + dc) | | Capture time | | 1 s, 3 s, 10 s, 30 s, 100 s, and 300 s | | 최대 샘플링 속도 | | 15.625 kHz | | | | Interface | | | | USB | | | | Power Log software |
| Logging Memory | | Logging areas | | Three areas that can be used individually or combined into one large area | | 평균시간 설정 | | 1 s, 2 s, 5 s, 10 s, 30 s, 1 min, 5 min, 10 min, 15 min, and custom | | 전기적 안전성 | | | | Safety IEC 61010-1 600 V CAT IV double or reinforced insulation, pollution degree 2 | | | | Protection IP40; EN60529 | | 최대 안전 전압 | Current measurement | 600 V ac rms or dc between uninsulated conductor and ground | | Voltage measurement | 600 V ac rms or dc between either input terminal and ground, or 825 V between energized phase voltages (delta power config.) | | | | EMC | | Emission | | IEC/EN 61326-1:1997 class A | | Immunity | | IEC/EN 61326-1:1997 Annex C Performance Criterion B | | | | Mechanical | | 크기( l x w x d ) | | 300 mm x 98 mm x 52 mm | | 밧데리를 포함한 무게 | | 820 g | | Jaw opening | | 60 mm | | Jaw capacity | | 58 mm diameter |
|
