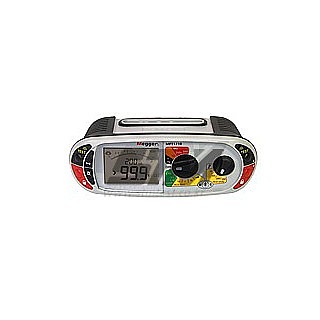

MFT-1700 > 다기능계측기 | 삼성종합계측기

MFT-1700 요약정보 및 구매

위시리스트 추천하기

1. 절연저항 테스트

2. 접지연속성 테스트

3. RCD 테스트

4. 루프 임피던스 테스트

5. 접지저항 테스트

6. 상회전 및 전원전압 테스트

	MFT1710	MFT1720	MFT1730
Insulation Ranges
100V			√
250V, 500V	√	√	√
1000V		√	√
Test Voltage Display	√	√	√
Adjustable Buzzer Threshold		√	√
Continuity & Resistance Ranges
200mA Test	√	√	√
15mA Test		√	√
Adjustable Buzzer Threshold	√	√	√
RCD Testing
1/2, 1, 5 x I & Ramp RCD Test	√	√	√
Auto RCD Test		√	√
Type AC, A and S RCDs	√	√	√
Type B (Pure DC) RCDs			√
Programmable RCD		√	√
3-Phase RCD (No Earth)		√	√
30, 100, 300 and 500mA RCD	√	√	√
10mA and 1000mA RCD		√	√
Loop Testing
2 and 3-Wire Non-Tripping L-PE 50V - 280V	√	√	√
2 Wire Hi Current L-N 50V - 280V	√	√	√
2 Wire Phase to Phase L-L 50V - 500V		√	√
PSCC & PFC (20kA Max)	√	√	√
Max Zs Display		√	√
R1 + R2 Value		√	√
Touch Voltage Display on Faulty Earth	√	√	√
Earth Electrode Test
2 and 3 Pole			√
Other Features
Supply Measurement	√	√	√
True RMS			√
Leakage Current Measurement		√	√
Phase Rotation		√	√
Calibration Certificate	√	√	√
Rechargeable Batteries with Charger			√
SP5 Switched Probe Included		√	√
Warranty Upgradeable to 3 Years	√	√	√
On-Board Memory with Bluetooth Download			√
CAT IV 300V / CAT III 600V	√	√	√
