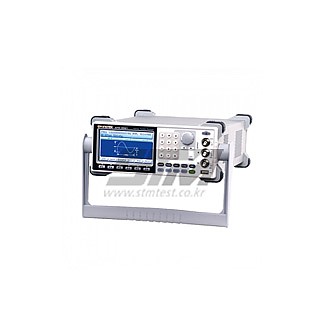

1번째 이미지 새창

AFG-3000 요약정보 및 구매

제조사	GW INSTEK
브랜드	GW INSTEK
모델	AFG-3051/3081
판매가격	전화문의
배송비결제	주문시 결제

위시리스트 추천하기

이전상품 AFG-3011C 다음 상품 AFG-2225

상품 정보

상품정보
상품문의 0
배송 및 반품정보
관련상품 0

상품 상세설명

AFG-3000시리즈

AFG-3051,AFG-3081

AFG3051,AFG3081

특징 (Features)

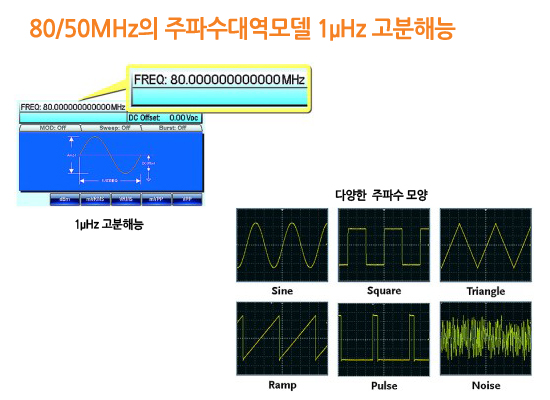

l 80M/50MHz주파수대역의 진보된 DDS임의파형발생기술

l 전체 주파수에 걸치1uHz 주파수고분해능

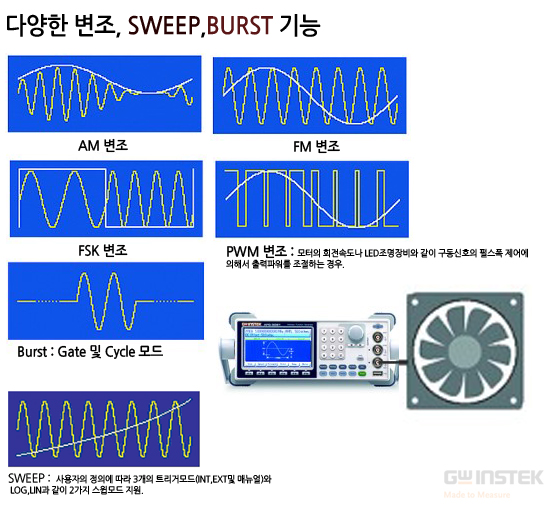

l AM,FM,PWM,FSK변조 및 Sweep,Burst기능내장

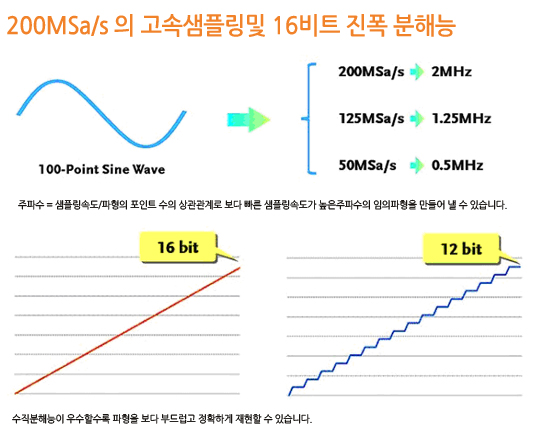

l 임의파형발생을 위한 완벽한 장비성능 : 200MSa/s의 고속샘플링,16비트 진폭 고분해능,1M포인트의 깊은메모리 및 사용자정의 마커&출력

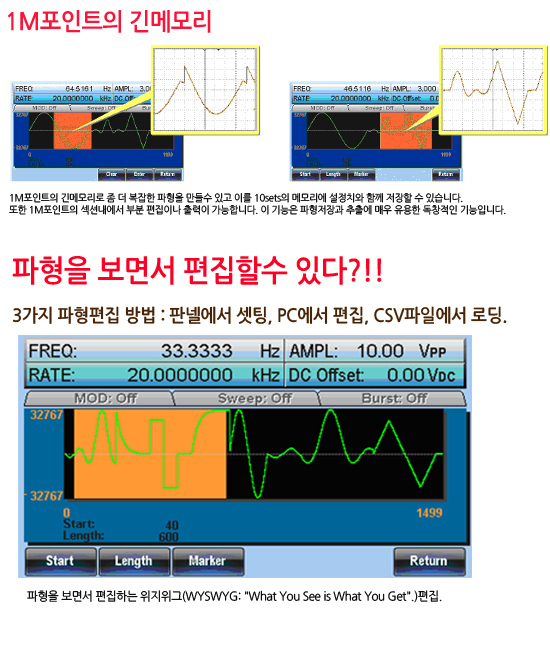

l 보면서 파형을 편집하는 DWR(Direct Waveform Reconstruction)

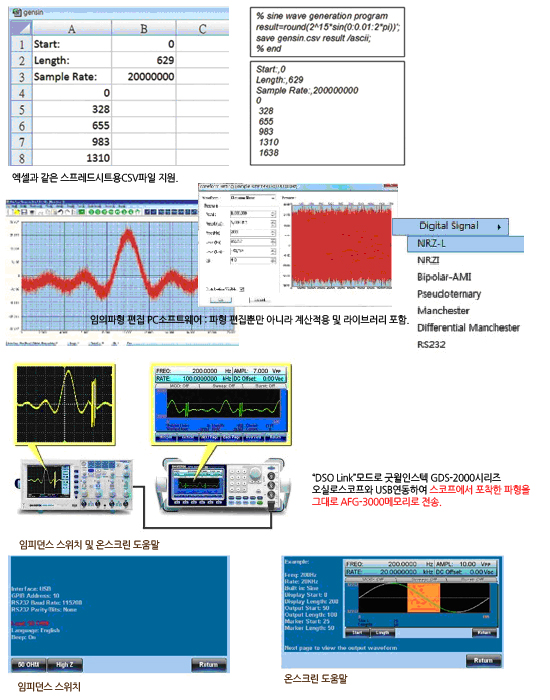

l 편리한 임의파형편집 PC소프트웨어

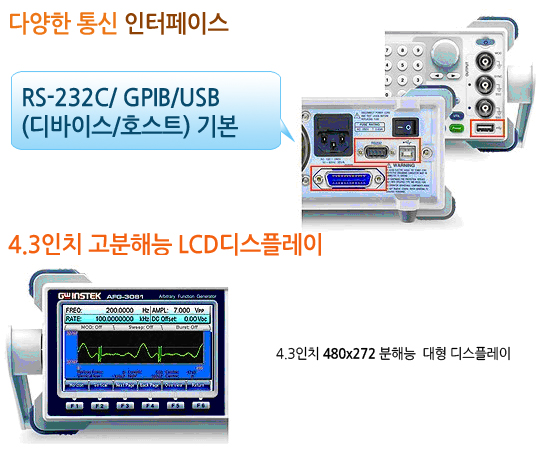

l USB/RS-232/GPIB 기본장착

l 4.3인치 고해상도LCD디스플레이

상세설명 (Description)

9848fbbd25e4dc245c4d4a7bdcad6981_1491272

사양

(Specification)

		AFG-3081	AFG-3051
Waveforms		Sine, Square, Ramp, Pulse, Noise, DC, Sin(x)/x, Exponential Rise, Exponential Fall, Negative Ramp
Arbitrary Waveforms
ARB Function		Built in
Sample Rate		200 MSa/s
Repetition Rate		100MHz
Waveform Length		1M points
Amplitude Resolution		16 bits
Non-Volatile Memory		Ten 1M waveforms(1)
User define Output Section		Any section from 2 to 1M points
User define Mark Output		Any section from 2 to 1M points
Frequency Characteristics
Range	Sine	80MHz	50MHz
	Square
	Triangle, Ramp	1MHz
Resolution		1uHz
Accuracy	Stability	±1 ppm 0 to 50℃
		±0.3 ppm 18 to 28℃
	Aging	±1 ppm, per 1 year
	Tolerance	≦ 1 uHz
Output Characteristics(2)

Amplitude	Range	10 mVpp to 10 Vpp( into 50Ω)
		20 mVpp to 20 Vpp(open-circuit)
	Accuracy	± 1% of setting ±1 mVpp
		(at 1 kHz,>10 mVpp)
	Resolution	0.1 mV or 4 digits
	Flatness	± 1% (0.1dB) <10 MHz
		± 2% (0.2 dB) 10 MHz to 50 MHz
		± 10% (0.9 dB) 50 MHz to 70 MHz
		± 20% (1.9 dB) 70 MHz to 80 MHz
		(sinewave relative to 1 kHz)
	Units	Vpp, Vrms, dBm,
Offset	Range	±5 Vpk ac +dc (into 50Ω)
		±10Vpk ac +dc (Open circuit)
	Accuracy	1% of setting + 2 mV+ 0.5% of amplitude
Waveform Output	Impedance	50Ω typical (fixed)
		> 10MΩ (output disabled)
	Protection	Short-circuit protected
		Overload relay auto-matically disables main output
SYNC Output	Level	TTL-compatible into>1kΩ
	Impedance	50Ω nominal
Sinewave Characteristics
Harmonic Distortion(5)		–60 dBc DC～1 MHz, Ampl＜3 Vpp
		–55 dBc DC～1 MHz, Ampl＞3 Vpp
		–45 dBc 1MHz～5 MHz, Ampl＞3 Vpp
		–30 dBc 5MHz～80 MHz, Ampl＞3 Vpp
Total Harmonic Distortion		< 0.2%+0.1mVrms
		DC to 20 kHz
Spurious (non-harmonic)(5)		–60 dBc DC～1 MHz
		–50 dBc 1MHz～20MHz
		–50 dBc+ 6 dBc/octave 1MHz～80MHz
Phase Noise		＜-65dBc typical 10MHz, 30 kHz band
		＜-47dBc typical 80MHz, 30 kHz band
Square wave Characteristics
Rise/Fall Time		<8 nS(3)
Overshoot		< 5%
Asymmetry		1% of period+1 ns
Variable Duty Cycle		20.0% to 80.0% ≦ 25 MHz
		40.0% to 60.0% 25～50MHz
		50.0%(Fixed) 50～80MHz
Jitter		0.01%+525ps ＜ 2 MHz
		0.1%+75ps ＞ 2 MHz
Ramp Characteristics
Linearity		＜ 0.1% of peak output
Variable Symmetry		0% to 100%
Pulse Characteristics
Period		20ns～ 2000s
Pulse Width		8ns～ 1999.9s
		Minimum Pulse Width:
		8nS when FREQ≦50MHz
		5% of setting period when FREQ≦6.5MHz
		Resolution:
		1nS when FREQ≦50MHz
		1% of setting period when FREQ≦6.5MHz
Overshoot		<5%
Jitter		100 ppm +50 ps
AM Modulation
Carrier Waveforms		Sine, Square, Triangle, Ramp, Pulse, Arb
Modulating Waveforms		Sine, Square, Triangle, Up/Dn Ramp
Modulating Frequency		2 mHz to 20 kHz
Depth		0% to 120.0%
Source		Internal / External
FM Modulation
Carrier Waveforms		Sine, Square, Triangle, Ramp
Modulating Waveforms		Sine, Square, Triangle, Up/Dn Ramp
Modulating Frequency		2 mHz to 20 kHz
Peak Deviation		DC to 80 MHz	DC to 50 MHz
Source		Internal / External
PWM
Carrier Waveforms		Square
Modulating Waveforms		Sine, Square, Triangle, Up/Dn Ramp
Modulating Frequency		2 mHz to 20 kHz
Deviation		0% ～ 100.0% of pulse width
Source		Internal / External
FSK
Carrier Waveforms		Sine, Square, Triangle, Ramp, Pulse
Modulating Waveforms		50% duty cycle square
Internal Rate		2 mHz to 100 kHz
Frequency Range		DC to 80 MHz	DC to 50 MHz
Source		Internal / External
SWEEP
Waveforms		Sine, Square, Triangle, Arb
Type		Linear or Logarithmic
Direction		Up or Down
Start F / Stop FREQ		100 uHz to 80 MHz	100 uHz to 50 MHz
Sweep Time		1 ms to 500 s
Trigger
